Light Source
Source: 7*40W RGBW 4-in-1 LEDs
Flicker free operation for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on several following
factors but not limited to:Environmental Conditions,
Power/Voltage, Usage Patterns (On-Off Cycling),
Control, and Dimming, etc)
Â
Optics
7PCS high efficiency acrylic lens
Optimized light pipe for higher LED efficiency
4°-60°Smooth and quiet linear motorized zoom
360°Continuous front lends rotation with variable speed
Â
Movement
PAN movement: 540° (8/16 bit)
TILT movement: 270° (8/16 bit)
Fast, quiet, smooth and precise 3-Phase motors
Smooth, fast and precise resolution for PAN/TILT
movement with low noise operation
Scan position memory, auto reposition after unexpected movemen
PAN/TILT reversible
Â
Color System
Pixel mapping capability with each LED
Sophisticated 4 colors RGBW mixed
Even and soft light coverage with pure mixing
Linear color temperature adjustment
Preset color macros
2 Color modes: RGWB/CMY
Â
Visual Effect
Different static shape selections
Different dynamic shape selections with variable speed
Shape fading effect Shape color options with 0-100% dimming
Background colors options with 0-100% dimming
Ringlike LED pixel strip for magic visual effects
Â
Strobe Effect
0-25Hz high speed shutter/strobe effect with variable speed
Random strobe effect with variable speed
Preset pulse strobe effect
Differenct forground/background strobe effect
Â
Dimming System
0-100% Smooth linear LED dimming
Fine dimming control
Â
Control System
12/16/19/39 DMX channels USITT DMX-512

DMX512, master-slave, sound activated or auto operation

Sound control sensitivity adjustable
RDM available (Remote Device Management)
Multi preset internal programs

DMX recorder and edit function integrated

Shielded input signal protection for stable signal without interference
3-Pin XLR connectors IN/OUT
Â
Display System
2.4" TFT LCD display
English/Chinese menu
4 Control buttons 180°
Reversible for LCD display
Display auto OFF
Â
Cooling System
Advanced cooling system integrated aluminum and copper with liquid
Efficient low noise self adjusting fan cooling system
Constant temperature readout and management function
Over temperature protection management
(output decreased when over heat)
Â
Power Supply
Electronic power supply
AC100-240V 50/60Hz
PowerCON IN/OUT with swtich and fuse
350W Power consumption
Â
Housing
Moulded fire proof ABS PC
Skeleton made of aluminum and steel metal plates
Two side handles on base
Exterior finish: Black
Â
Installation
2*1/4 turn fastening Omega Clamps
(Adaptable vertically and horizontally)
1*Safety attachment point
Â
Operating Condition
Operating positions:
all (device on floor or fixed to a support)
-25 to 45 ambient temperature
IP20 protection rating
Â
Weight
N.W.: 10kg
G.W.: 12.3kg
Â
Dimensions

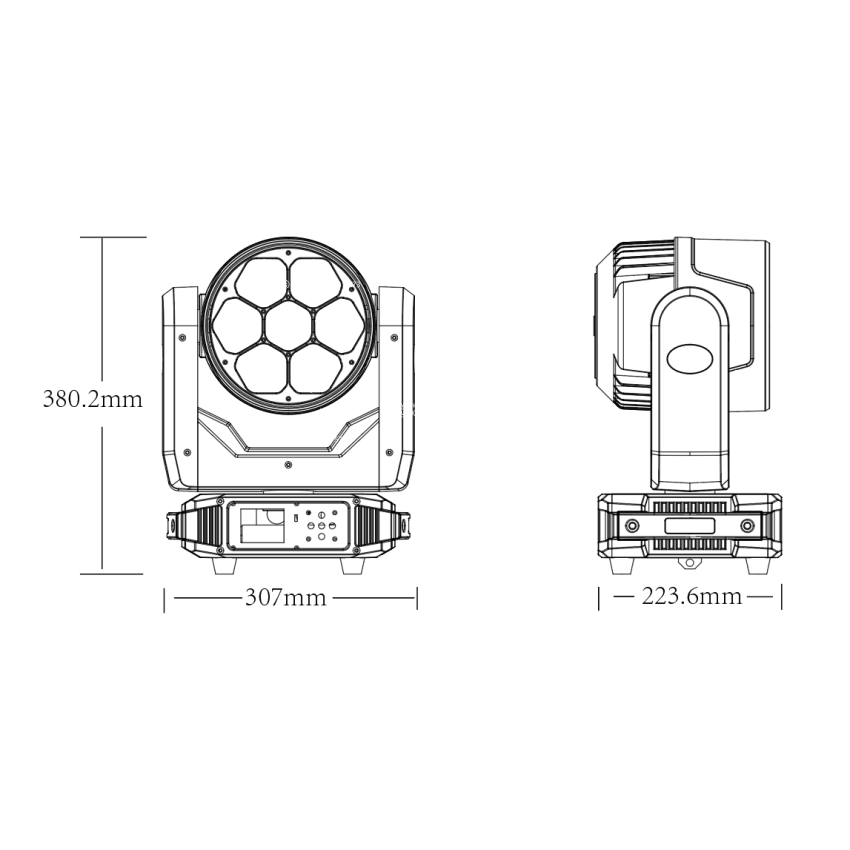

Product Dimensions: 223.6(D)*307 (W)*380.2(H)mm
Packing Dimensions: 310(D)*415(W)*510(H)mm
